Asus ROG Strix B550-A Gaming AM4 ATX Motherboard
Call for Price
Key Features
- Model: Asus ROG Strix B550-A Gaming
- AMD AM4 socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity
- Robust power solution
- Industry-leading gaming audio
Price Change Declaimer
M R Corporation can change The price of any product at any moment due to the volatile price of the technology product.Product Information Declaimer
We cannot guarantee that the information on this page is 100% correct. M R Corporation is not responsible for the results obtained from the use of this information.Stock Availability Declaimer
Stock Availability Are Subject To Change. Please Confirm Availability Before Shopping By Calling Us.Specification
| Basic Information | ||
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode) |
|
| Memory | ||
| Type | Dual Channel Memory Architecture OptiMem II |
|
| Slots | 4 x DIMM slots | |
| Supported Memory | 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU |
|
| Maximum Memory | 128GB, DDR4 | |
| Graphics | ||
| Graphics | Integrated Graphics Processor Supports AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| Display Port (s) | 1 x DisplayPort 1.2 | |
| USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
|
| LAN Port (s) | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : Support Raid 0, 1, 10 Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) |
|
| Audio | ROG SupremeFX8-Channel High Definition Audio CODEC S1220A – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – Supports up to 32-Bit/192kHz playback * Audio Feature : – SupremeFX Shielding Technology – Gold-plated jacks – Optical S/PDIF in port(s) at back panel – Audio Shielding – Premium Japanese audio capacitors – Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |
|
| Others | ||
| Special Features | RAura Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield – SafeSlot |
|
| Bundled Software | ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3: – PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO – EZ update WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
Description

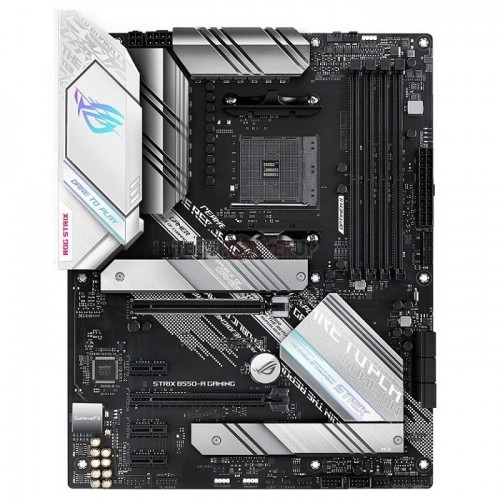

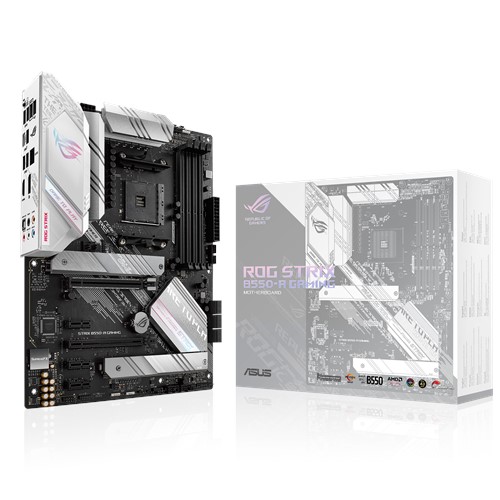

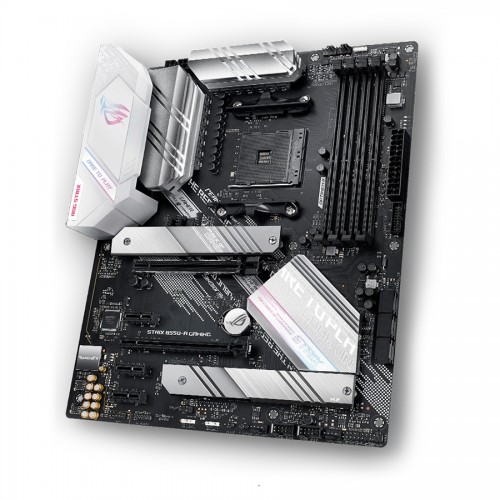

Asus ROG Strix B550-A Gaming AM4 ATX Motherboard
The ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0 connectivity. It provides robust power delivery and effective cooling, ROG Strix B550-A Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. As an added bonus, outstanding performance is complemented by a stunning silver-and-white finish which owns outstanding look. ROG Strix B550-A Gaming is PCIe 4.0-ready and offers the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements gives users a massive advantage, allowing them to pick up on the subtlest of cues for a completely immersive gaming experience. It features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost. Also, ROG Strix B550-A Gaming provides robust power delivery to fuel Ryzen’s cores, comprehensive cooling, and support for faster memory which competes the need of an users to load up your build with high-performance components for playing in the big leagues. Since, the cyberpunk-inspired aesthetics of ROG Strix B550-A Gaming are accentuated by the bold slashes and cybertext. By pairing the rig with other products from the diverse ROG ecosystem, users can create a fully customized gaming setup that reflects their personal style. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements allows to configure the gaming build the way one wants. Each section of the UEFI’s Advanced mode is intuitively organized, and a built-in search feature makes it easy to find the options user needs. To make it note worthy, advanced functions are coded with the intelligence to adapt to user’s settings. This exclusive motherboard comes with 03 years of warranty.
